|Hornady Lock-N-Load Deluxe
Powder Measure NZ$178 (incl. GST)
Model # 050069

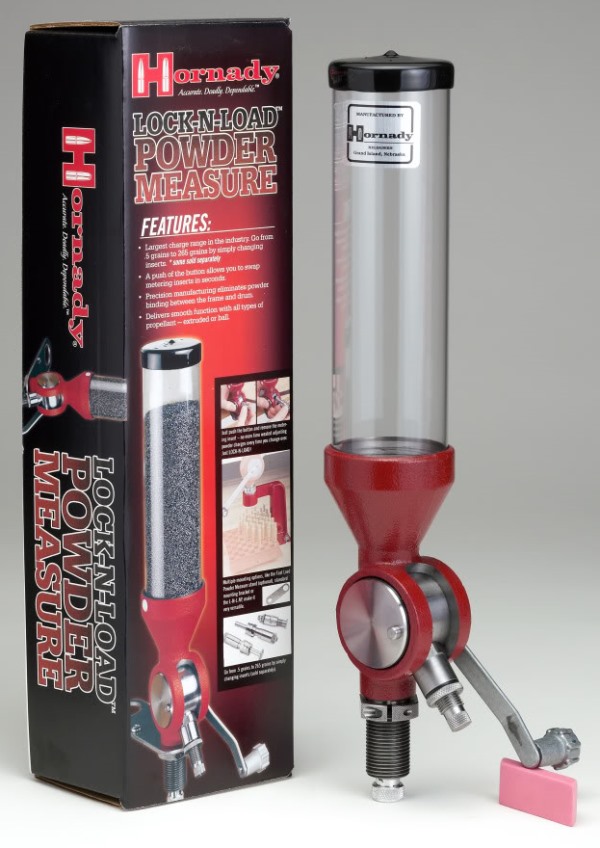

Hornady® Lock-N-Load® Deluxe Powder Measure — Efficiency and Accuracy
The Lock-N-Load® powder measure offers the most flexible operation and the widest range of any powder measure. It ranges from .5 - 265 grains of powder (special metering inserts and rotor required). Metering inserts can be changed with the push of a button. Comes with standard rotor and metering insert.
Deluxe Powder Measure is the only system that uses a full size powder measure
that can be reset to another charge or powder with the push of a
button. The unique inserts in the measure can be preset to the charge
you use with the caliber you are loading.
Push a button, change
inserts and powder and you’re ready to go. Inserts can be adjusted
for almost any charge. The most flexible (and economical) powder
system available for progressive presses. (With optional powder
die you never have to readjust for a caliber conversion. It switches
instantly.) Mounts to your bench or press.
The Hornady Lock-N-Load Deluxe Powder Measure is loaded with innovative features that serious reloaders demand. The design allows you to change powders and settings with the push of a button.
With the proper accessories you can dispense between .5 and 75 grains of powder. The push button release allows you to quickly change metering inserts for predetermined charge weights, so you can switch calibers quickly and easily without the hassle of resetting the measure.
The tension on the metering insert is adjustable with an "O" ring that allows a slight amount of tension on the metering insert to make fine, incremental adjustments. The precision tolerance of .002" between the drum and rotor eliminate powder binding between the frame and the drum. Measure comes with small and large drop tubes plus a mounting plate. Measure has standard 7/8"-14 threaded dies.
Weight: 3.55 lbs
Material: Aluminum and Steel Body, Plastic Powder Hopper.
Metering Chamber: Standard rifle, capable of throwing charges from .5-100 grains.
Features: Additional metering inserts and rotors (sold separately) to expand the use of the measure.
Attachment: Mounting Plate, or Stand (sold separately) that accepts standard 7/8"-14 threads.
Includes: Mounting Plate and Standard Lock-N-Load metering insert.
Powder Charge Thrown: Between 0 and 75 grains of powder
Notes: Allows changing powder meters with the push of the release button.
* Largest Charge Range in the Industry - Go from .5 grain to 265 grains by simply changing rotor and inserts. Use one Lock-N-Load® Powder Measure for reloading everything from small pistol cartridges to large magnum rifle cartridges.
* Push Button Release Function - To change metering inserts, just push the Lock-N-Load® insert release button and insert another metering insert. Simply verify the new charge and you're reloading again right away. Inserts can be swapped in seconds. Go from reloading 30-06 to 45 Auto in no time. Keep the preset inserts with your die sets.
* Precision Tolerance - With only .002" clearance between the drum and rotor, it's the tightest in the industry for a standard measure. This tight tolerance helps eliminate powder binding between the frame and drum, delivering smooth function with all types of propellant–extruded or ball.
Multiple Mounting Methods - Mount to your bench using a standard mounting bracket and lock ring, or use our Lock-N-Load® bushings to mount this versatile measure on the Fast Load Powder Measure Stand or on the Lock-N-Load® AP™ with case activated powder drop for automatic powder measuring during reloading.
Adjustable Tension - The O-ring on the metering insert adjustment lets you put a slight amount of tension on the metering unit to make fine, incremental adjustments. Once you've set your charge, tighten the lock ring to secure the setting.
Small & Larger Drop Tubes - These tubes speed up powder flow. Two drop tubes are provided standard for .204 to 45 caliber loads. Use the largest drop tube that fits the case mouth. An optional extended drop tube is also available.
Stay Loaded: Reloading provides the ability for shooters to customize loads for individual firearms; it’s an excellent past time, and often offsets much of the cost of shooting by reusing the most expensive component of ammunition – the cartridge case. Not only do handloaders maintain control of the ammunition assembling process, but there’s an overwhelming feeling of self satisfaction when you knock over that plate, hammer the X ring or drop that buck of a lifetime with ammunition that you handloaded.
Lock-N-Load®: Reloading is all about control. The patented Hornady® Lock-N-Load technology offers complete control, allowing you to change dies and begin loading another caliber in seconds.
Eliminate Hassle: The Hornady Lock-N-Load system features quick tool change technology that allows you to switch rifle and pistol dies, powder dies, check dies, bullet seaters or crimp dies without having to change the whole die head. This unique technology is featured on our Lock-N-Load Classic and Lock-N-Load AP presses. In addition, Hornady conversion bushings can convert other brands to the Lock-N-Load system.
Get In the Zone: The complete line of Hornady powder measures, dies, precision gauges and reloading accessories are at your fingertips in the Hornady Reloading RedZone.
